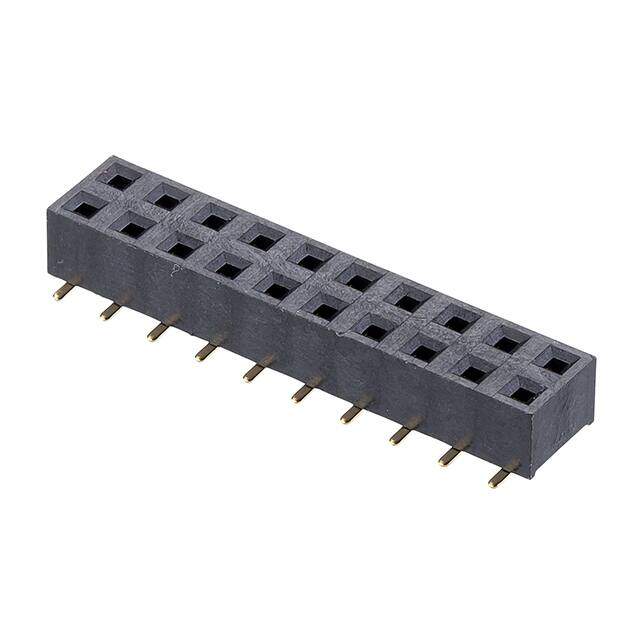

M20-7811045R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 20POS 0.1 GOLD SMD
PDF
/
Buying Options
Total Price: USD $3.15
Unit Price: USD $3.1504
≥1 USD $3.1504
≥10 USD $2.85648
≥100 USD $2.517064
Inventory: 1468
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA9T), Nylon 9T, Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2016
Series M20
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 20
Applications General Purpose
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Current Rating (Amps) 3A
Total Number of Contacts 20
Insulation Height 0.140 3.56mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 0.59μin 0.015μm
Contact Finish Thickness - Post 5.90μin 0.150μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
