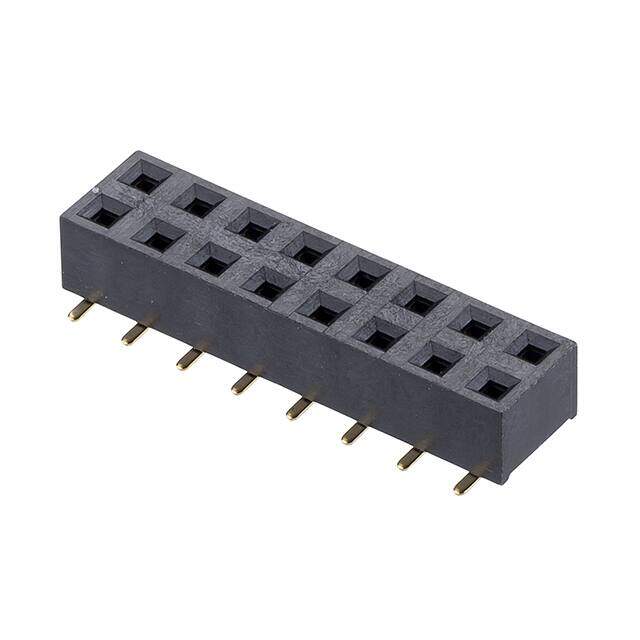

M20-7810845 image
Favorite
M20-7810845 image
Favorite

M20-7810845

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 16POS 0.1 GOLD SMD
PDF
/
Buying Options
Total Price: USD $2.24
Unit Price: USD $2.2352
≥1 USD $2.2352
≥10 USD $1.9206
≥100 USD $1.786479
≥500 USD $1.51851
≥1000 USD $1.29521
≥3000 USD $1.161222
Inventory: 541
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 5.90μin 0.150μm
Contact Finish Thickness - Mating 0.59μin 0.015μm

Technical

UL Flammability Code 94V-0
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.140 3.56mm
Total Number of Contacts 16
Current Rating (Amps) 3A
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 2
Applications General Purpose
Number of Positions 16
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series M20
Published 2016
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Insulation Material Polyamide (PA9T), Nylon 9T, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 13 Weeks
