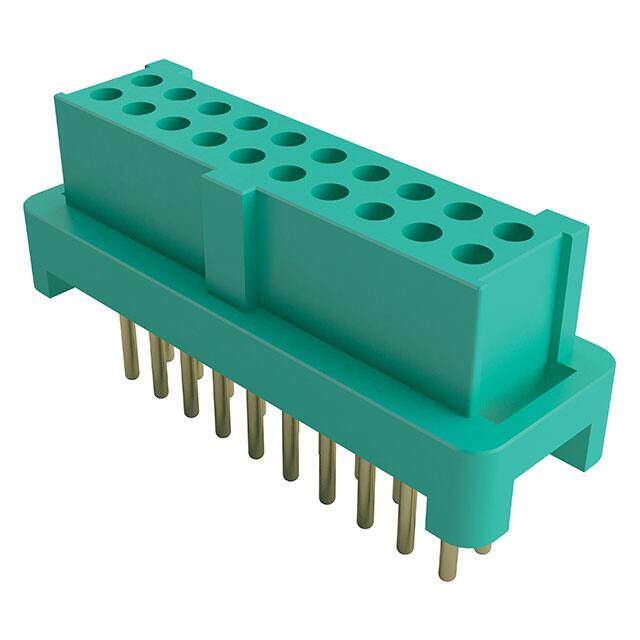

G125-FV22005L0P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Board to Board F 20 POS 1.25mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $17.32
Unit Price: USD $17.3184
≥1 USD $17.3184
≥10 USD $15.01104
≥100 USD $12.372096
≥500 USD $11.299851
Inventory: 97
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Housing Material Thermoplastic
Technical
Operating Temperature -65°C~150°C
Packaging Bulk
Published 2013
Series Gecko
Feature Pick and Place, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 20
Applications Automotive, General Purpose
Number of Rows 2
Voltage - Rated 120V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Female Socket
Insulation Height 0.207 5.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.049 1.25mm
Insulation Color Green
Row Spacing - Mating 0.049 (1.25mm)
Contact Length - Post 0.177 4.50mm
Contact Gender Female
Insulation Resistance 1GOhm
Insulation Insulated
Dimensions
Length 11.25mm
Contact Finish Thickness - Mating 8.00μin 0.203μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
