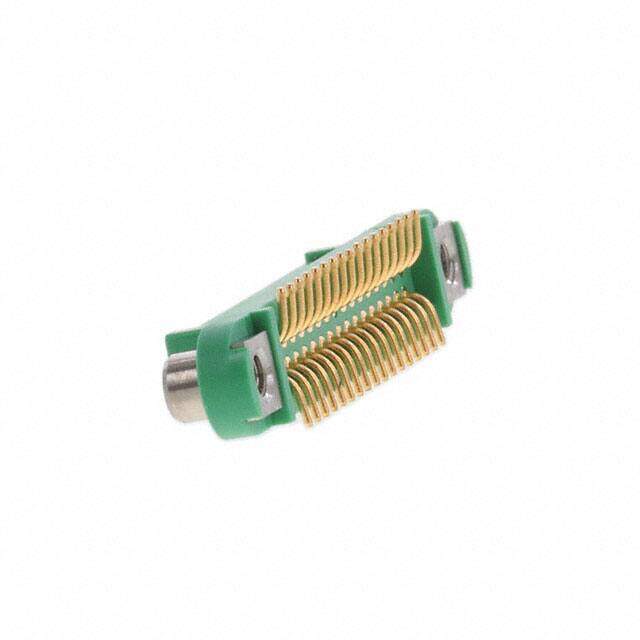

G125-FS13405F2P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Wire-To-Board Connector, 1.25 mm, 34 Contacts, Receptacle, Gecko SL G125 Series, Surface Mount
PDF
/
Buying Options
Total Price: USD $96.96
Unit Price: USD $96.958978
≥1 USD $96.958978
≥200 USD $38.687224
≥500 USD $37.395331
≥1000 USD $36.755948
Inventory: 7553
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Circular
Insulation Material Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Technical
Operating Temperature -65°C~150°C
Packaging Cut Tape (CT)
Series Gecko SL Reverse Fix
Feature Pick and Place, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 34
Number of Rows 2
Voltage - Rated 450V
Fastening Type Screw Lock
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 2A
Insulation Height 0.207 5.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.049 1.25mm
Insulation Color Green
Row Spacing - Mating 0.049 (1.25mm)
Dimensions
Contact Finish Thickness - Mating 8.00μin 0.203μm
Contact Finish Thickness - Post 8.00μin 0.203μm
Stack Height (Mating) 7.33mm 7.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
