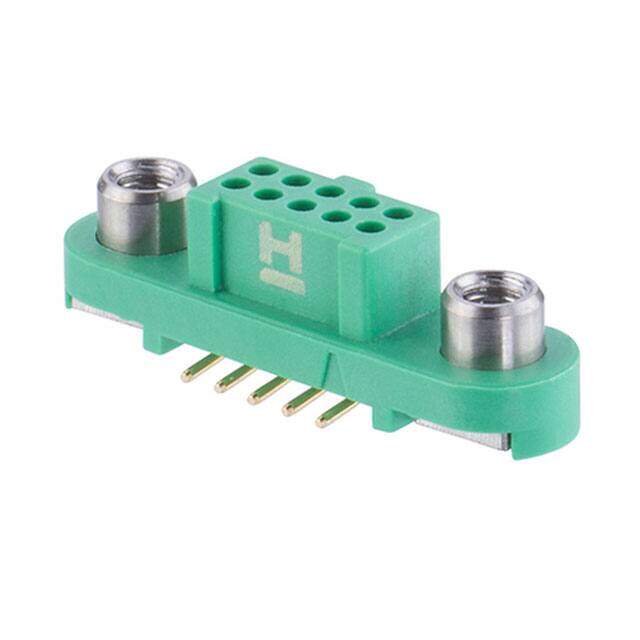

G125-FS11005F2P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Wire-To-Board Connector, 1.25 mm, 10 Contacts, Receptacle, Gecko SL G125 Series, Surface Mount
PDF
/
Buying Options
Total Price: USD $20.61
Unit Price: USD $20.6096
≥1 USD $20.6096
≥10 USD $18.04528
≥100 USD $16.152048
≥500 USD $14.81531
Inventory: 85
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.33mm 7.4mm
Contact Finish Thickness - Post 8.00μin 0.203μm
Contact Finish Thickness - Mating 8.00μin 0.203μm
Technical
Row Spacing - Mating 0.049 (1.25mm)
Insulation Color Green
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.207 5.25mm
Current Rating (Amps) 2A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Screw Lock
Voltage - Rated 450V
Number of Rows 2
Number of Positions 10
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place, Polarizing Key
Series Gecko SL Reverse Fix
Packaging Cut Tape (CT)
Operating Temperature -65°C~150°C
Physical
Insulation Material Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Contact Shape Circular
Mounting Type Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 13 Weeks
