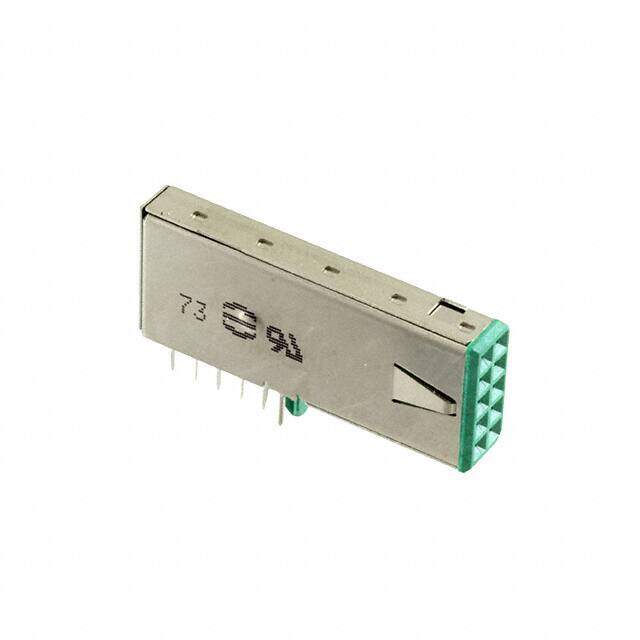

27211218005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Hard Metric Connectors 10P FEMALE ANGLED SOLDER PINS GRN
PDF
/
Inventory: 4851
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 5.2mm
Technical
Number of Ports 1
Polarization Key POLARIZED HOUSING
Max Current Rating 1.5A
Mating Contact Pitch 0.079 inch
UL Flammability Code 94V-0
Body Breadth 0.453 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 5
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Green
Pitch - Mating 0.079 2.00mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.453 11.50mm
Depth 28.35mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 2
Number of Positions 10
Connector Type Socket
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Board Guide, Shielding Pins
JESD-609 Code e4
Series Har-link?
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polyester
Insulation Material Plastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
