27211218004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

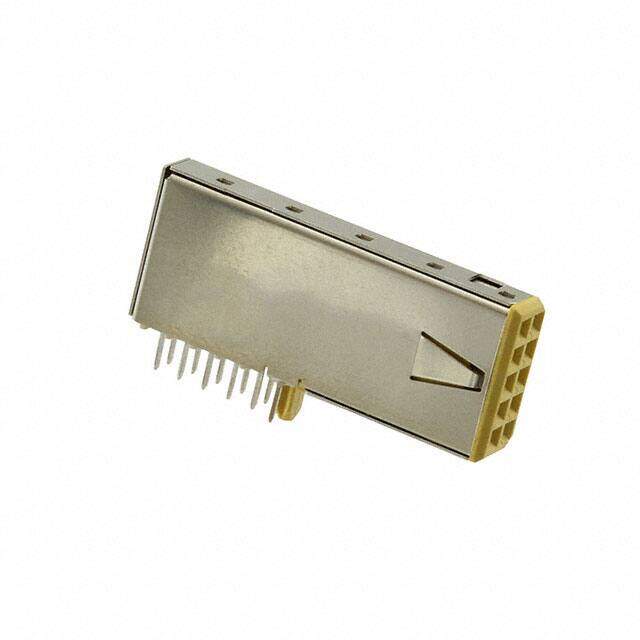

Hard Metric Connectors 10P FEMALE ANGLED SOLDER PINS YLW
PDF
/
Inventory: 8326
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.114 inch
Technical
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.079 inch
Body Depth 1.116 inch
UL Flammability Code 94V-0
Body Breadth 0.453 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 5
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Yellow
Pitch - Mating 0.079 2.00mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.453 11.50mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Receptacle
Number of Rows 2
Number of Positions 10
Connector Type Socket
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Shielding Pins
JESD-609 Code e4
Series Har-link?
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Plastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
