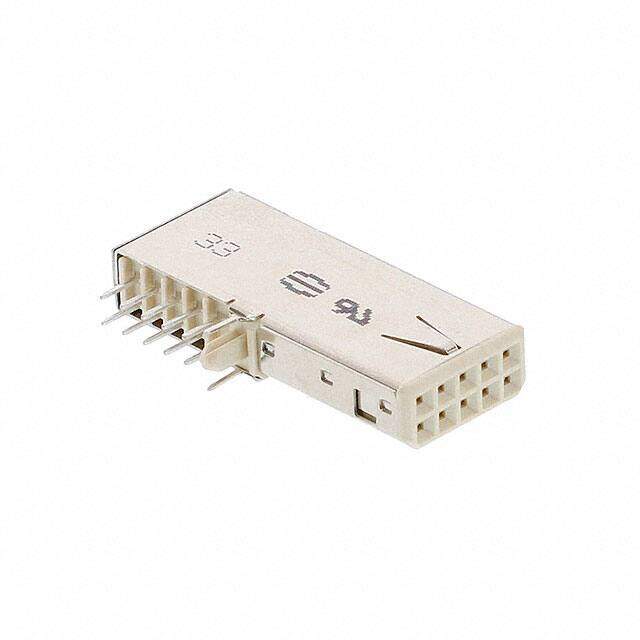

27211218000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Hard Metric Connectors 5x2 6mm R/A CONN HAR-LINK
PDF
/
Buying Options
Total Price: USD $16.67
Unit Price: USD $16.6672
≥1 USD $16.6672
≥10 USD $14.4452
≥100 USD $13.691392
≥500 USD $11.90552
≥1000 USD $11.111786
≥3000 USD $10.873667
Inventory: 939
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 5.2mm
Technical
Number of Columns 5
Number of Ports 1
Polarization Key POLARIZED HOUSING
Max Current Rating 1.5A
Mating Contact Pitch 0.079 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 5
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Voltage - Rated AC 750V
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.079 2.00mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.453 11.50mm
Depth 28.35mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Gender Receptacle
Number of Rows 2
Color Beige
Number of Positions 10
Connector Type Socket
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Shielding Pins
Series Har-link?
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polyester
Insulation Material Plastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
