15250682601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

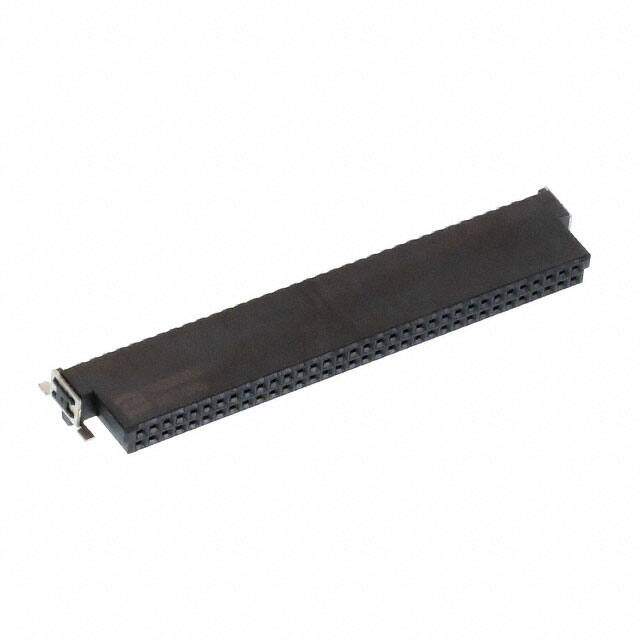

Board to Board & Mezzanine Connectors HAR-FLEX R/A FEMALE 68P
PDF
/
Buying Options
Total Price: USD $7.47
Unit Price: USD $7.4712
≥1 USD $7.4712
≥10 USD $6.72056
≥100 USD $6.006176
Inventory: 2982
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Contact Finish - Post Tin
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.120 3.05mm
Orientation Right Angle
Contact Type Female Socket
Contact Finish - Mating NOT SPECIFIED
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 2
Applications General Purpose
Number of Positions 68
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
JESD-609 Code e3
Series har-flex?
Packaging Cut Tape (CT)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
