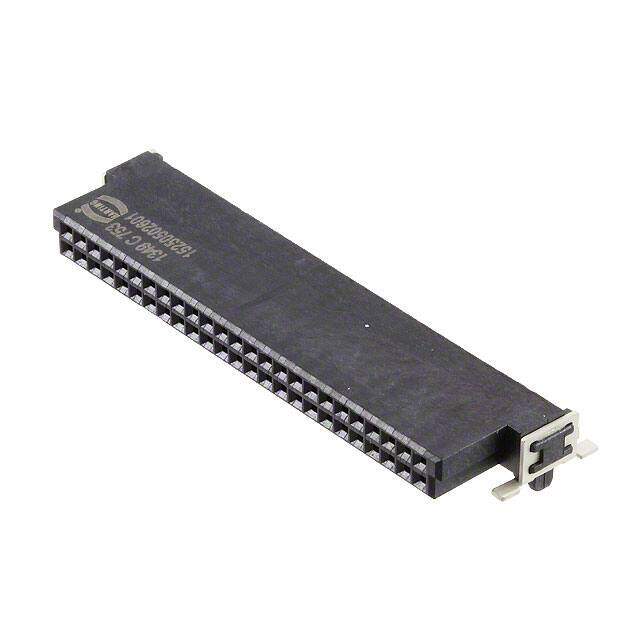

15250502601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECPT 50POS 1.27MM R/A
PDF
/
Buying Options
Total Price: USD $5.76
Unit Price: USD $5.764
≥1 USD $5.764
≥10 USD $5.21488
≥100 USD $4.565616
Inventory: 742
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
JESD-609 Code e3
Feature Board Guide, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 50
Applications General Purpose
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Contact Type Female Socket
Orientation Right Angle
Insulation Height 0.120 3.05mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.5A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Contact Finish - Post Tin
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
