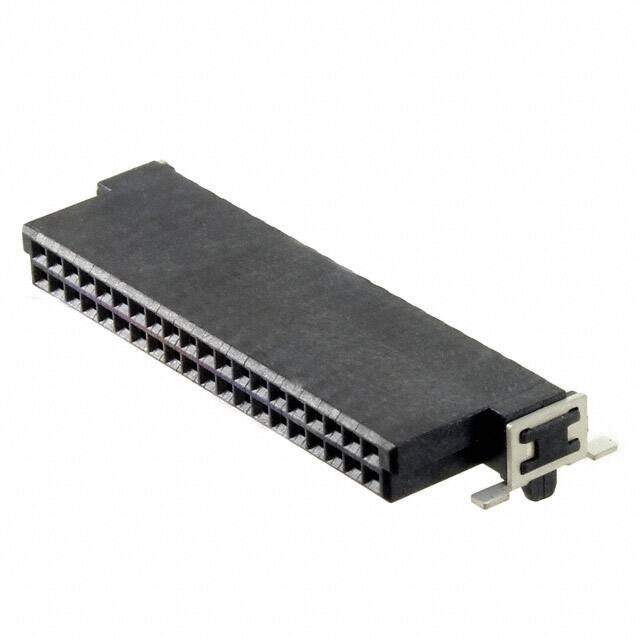

15250402601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECPT 40POS 1.27MM R/A
PDF
/
Buying Options
Total Price: USD $5.35
Unit Price: USD $5.3504
≥1 USD $5.3504
≥10 USD $4.85496
≥100 USD $4.277328
Inventory: 200
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Contact Finish - Post Tin
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.120 3.05mm
Orientation Right Angle
Contact Type Female Socket
Fastening Type Push-Pull
Number of Rows 2
Applications General Purpose
Number of Positions 40
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
JESD-609 Code e3
Series har-flex?
Packaging Cut Tape (CT)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
