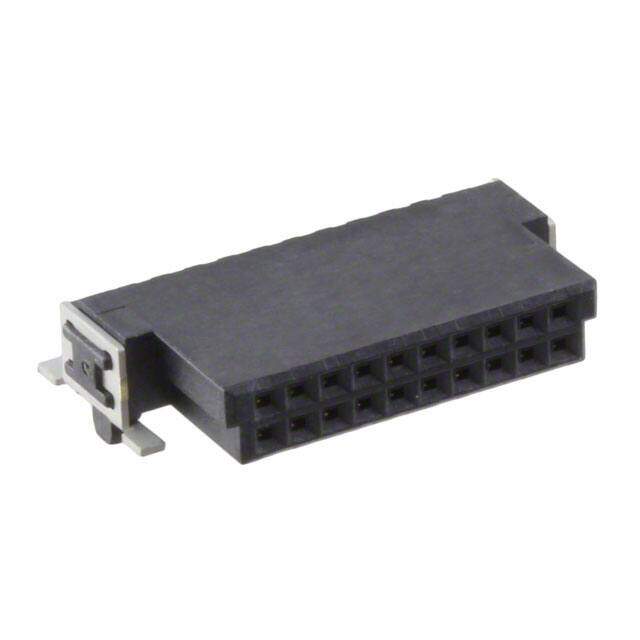

15250202601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECPT 20POS 1.27MM R/A
PDF
/
Buying Options
Total Price: USD $4.03
Unit Price: USD $4.0304
≥1 USD $4.0304
≥10 USD $3.66168
≥100 USD $3.225816
Inventory: 482
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
JESD-609 Code e3
Feature Board Guide, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 20
Applications General Purpose
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating NOT SPECIFIED
Contact Type Female Socket
Orientation Right Angle
Insulation Height 0.120 3.05mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.7A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Contact Finish - Post Tin
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
