15250162601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

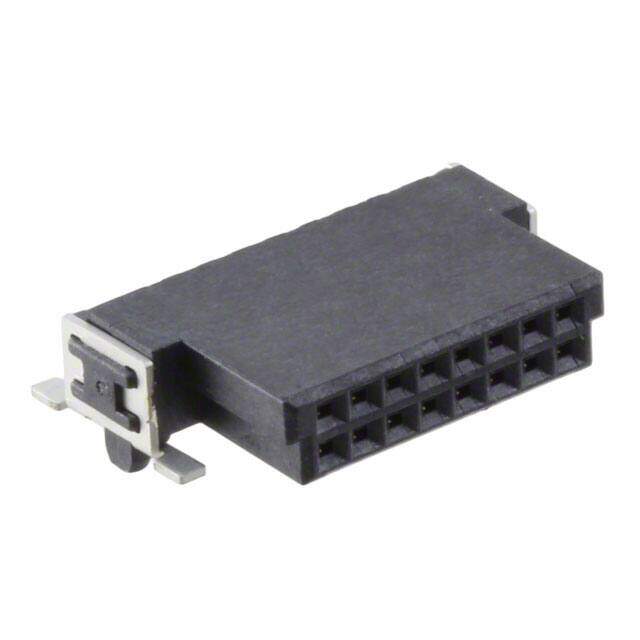

CONN RECPT 16POS 1.27MM R/A
PDF
/
Buying Options
Total Price: USD $3.78
Unit Price: USD $3.784
≥1 USD $3.784
≥10 USD $3.4364
≥100 USD $3.027816
Inventory: 226
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
Contact Finish - Post Tin
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Current Rating 1.7A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.120 3.05mm
Orientation Right Angle
Contact Type Female Socket
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 2
Applications General Purpose
Number of Positions 16
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
JESD-609 Code e3
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
