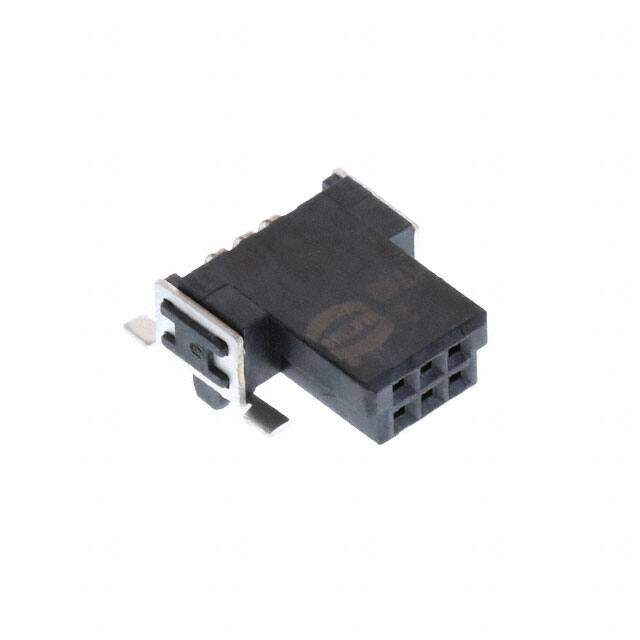

15250062601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 6POS 0.05 SMD R/A
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.684
≥1 USD $2.684
≥10 USD $2.43672
≥100 USD $2.146936
Inventory: 2832
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
JESD-609 Code e3
Feature Board Guide, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 6
Applications General Purpose
Number of Rows 2
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating AU ON PD-NI
Contact Type Female Socket
Total Number of Contacts 6
Orientation Right Angle
Insulation Height 0.120 3.05mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 2.3A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.35 inch
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Insertion Force-Max .5004 N
Withdrawl Force-Min .5004 N
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
