15220802601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

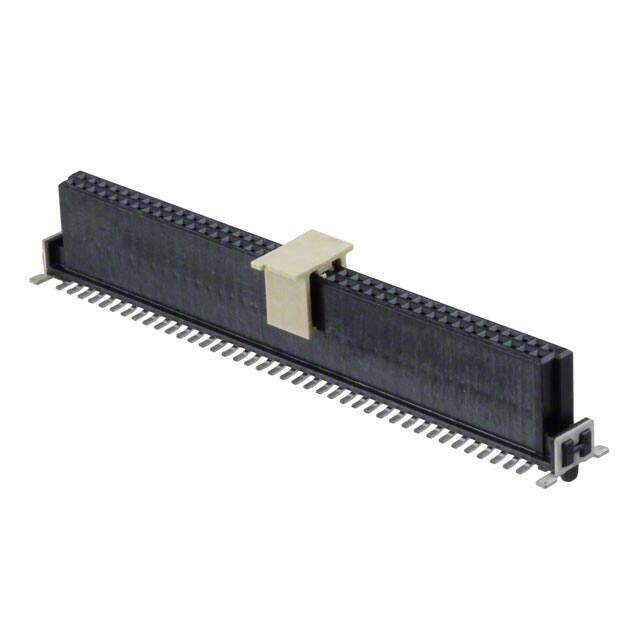

HARTING 15 22 080 2601000 Board-To-Board Connector, 9.05 mm Height, Surface Mount, Receptacle, 80 Contacts, 1.27 mm
PDF
/
Buying Options
Total Price: USD $8.29
Unit Price: USD $8.289162
≥1 USD $8.289162
≥10 USD $7.819968
≥100 USD $7.377333
≥500 USD $6.959744
≥1000 USD $6.565795
Inventory: 6999
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Liquid Crystal Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
JESD-609 Code e3
Feature Board Guide, Pick and Place, Solder Retention
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 80
Applications General Purpose
Number of Rows 2
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Total Number of Contacts 80
Orientation Straight
Insulation Height 0.356 9.05mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 700mA
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Depth 0.356 inch
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 5.4864 mm
Durability 500 Cycles
Insertion Force-Max .5004 N
Withdrawl Force-Min .5004 N
Dimensions
Stack Height (Mating) 10.8mm ~ 13.8mm
Stack Height 9.05mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
