15210402601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

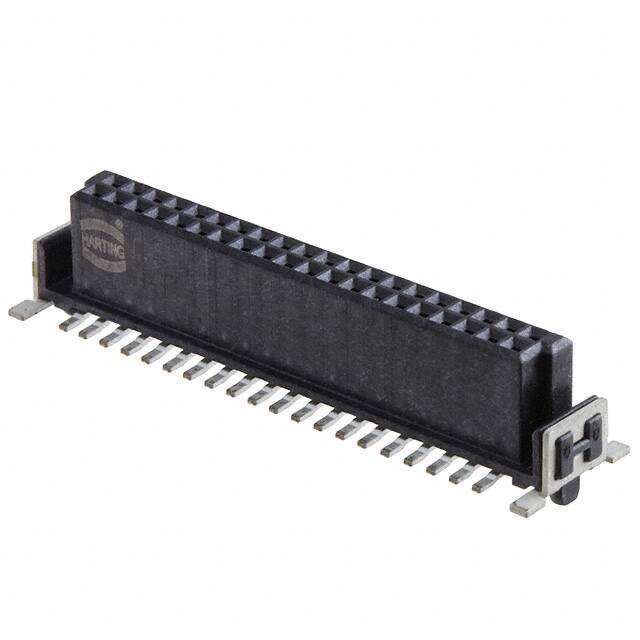

Conn; PCB; Female; 1.27mm Pitch; 40 Pin; 2 Row; Straight; Stack Height 6.25mm; har-flex
PDF
/
Buying Options
Total Price: USD $6.05
Unit Price: USD $6.0544
≥1 USD $6.0544
≥10 USD $5.47096
≥100 USD $4.78984
Inventory: 171
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Liquid Crystal Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
Feature Board Guide, Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 40
Applications General Purpose
Number of Rows 2
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Total Number of Contacts 40
Orientation Straight
Insulation Height 0.246 6.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 5.4864 mm
Durability 500 Cycles
Insertion Force-Max .5004 N
Withdrawl Force-Min .5004 N
Dimensions
Stack Height (Mating) 8mm ~ 11mm
Stack Height 6.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
