15210322601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

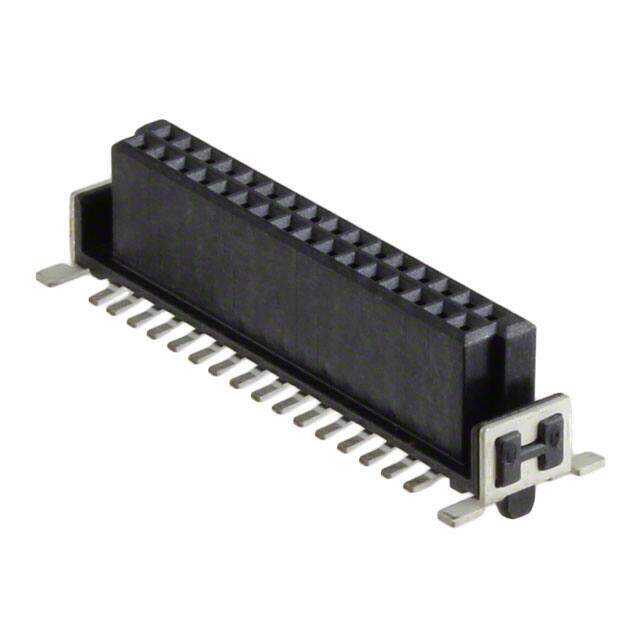

Wire-To-Board Connector, Vertical, Har-Flex Series, Surface Mount, Receptacle, 32, 1.27 Mm
PDF
/
Buying Options
Total Price: USD $5.48
Unit Price: USD $5.4824
≥1 USD $5.4824
≥10 USD $4.9544
≥100 USD $4.338312
Inventory: 107
Minimum: 1
-
+
Technical Details
Technical
Number of Positions Loaded All
Current Rating 1.7A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1 inch
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 5.4864 mm
Durability 500 Cycles
Insertion Force-Max .5004 N
Withdrawl Force-Min .5004 N
Style Board to Board or Cable
Insulation Height 0.246 6.25mm
Orientation Straight
Total Number of Contacts 32
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Applications General Purpose
Number of Positions 32
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Pick and Place, Solder Retention
Series har-flex?
Packaging Cut Tape (CT)
Operating Temperature -55°C~125°C
Dimensions
Stack Height (Mating) 8mm ~ 11mm
Stack Height 6.25mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Housing Material Liquid Crystal Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
