15210262401000

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets

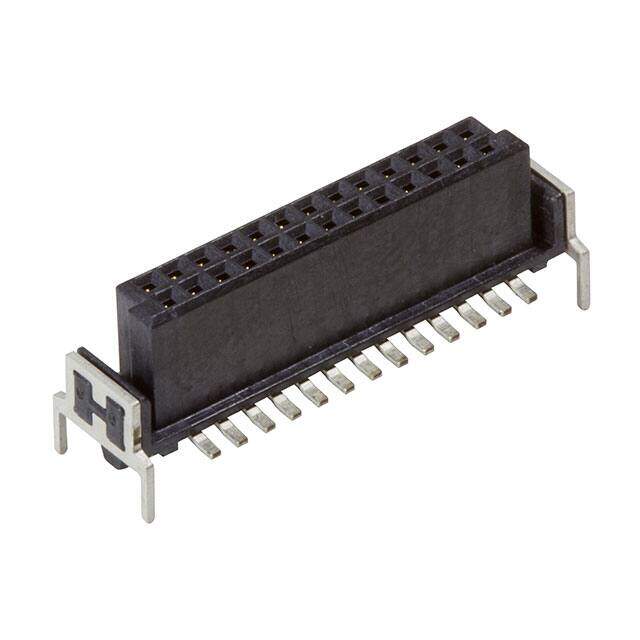

Description HARTING 15210262401000 CONNECTOR, RCPT, 26POS, 2ROW, 1.27MMNew
PDF
/
Buying Options
Total Price: USD $5.54
Unit Price: USD $5.5352
≥1 USD $5.5352
≥10 USD $5.00368
≥100 USD $4.380816
Inventory: 299
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Technical

Contact Finish - Post Tin
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.246 6.25mm
Total Number of Contacts 26
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 26
Connector Type Receptacle
Termination Solder
Part Status Active
Pbfree Code yes
Feature Board Guide, Pick and Place, Solder Retention
Series har-flex?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 5 Weeks
