15210205601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

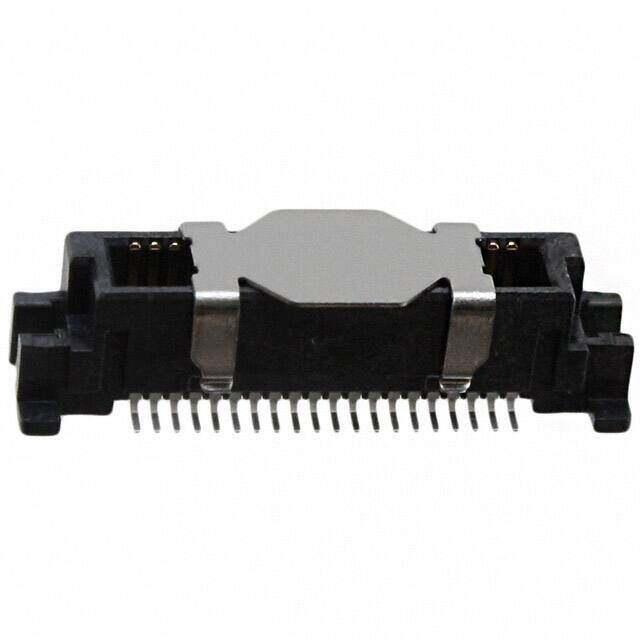

Rectangular Connector Receptacle
PDF
/
Inventory: 8321
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series har-flex?
Feature Board Guide, Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 20
Applications General Purpose
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Total Number of Contacts 20
Insulation Height 0.246 6.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.7 inch
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 5.4864 mm
Insertion Force-Max .5004 N
Withdrawl Force-Min .5004 N
Dimensions
Contact Finish Thickness - Mating 2.40μin 0.061μm
Stack Height (Mating) 8mm ~ 11mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
