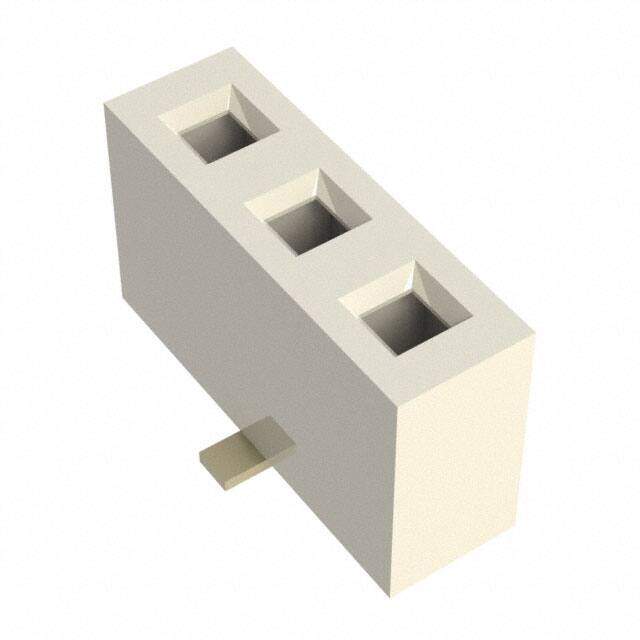

BG306-03-A-2-0400-L-B image
Favorite
BG306-03-A-2-0400-L-B image
Favorite

BG306-03-A-2-0400-L-B

GCT
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description 3W, 2.54MM PITCH SCK, SIL, SMT,
PDF
/
Inventory: 9157
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash

Technical

Insulation Color Natural
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.197 5.00mm
Current Rating (Amps) 3A per Contact
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Number of Positions 3
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series BG306
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C

Physical

Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 8 Weeks
