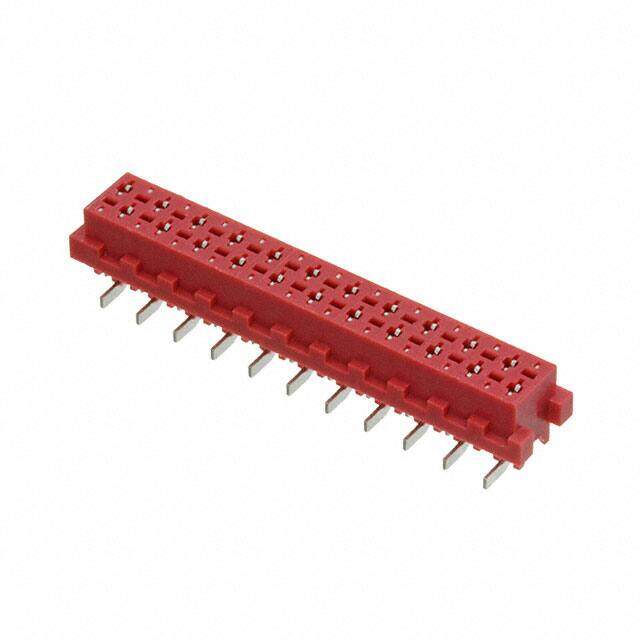

3521-22-0101-99 image
Favorite
3521-22-0101-99 image
Favorite

3521-22-0101-99

CNC Tech
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 22POS 0.1 TIN SMD
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.188
≥1 USD $1.188
≥10 USD $1.00144
≥100 USD $0.899448
≥500 USD $0.735926
≥1000 USD $0.654157
≥3000 USD $0.572387
Inventory: 972
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Technical

Insulation Color Red
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.197 5.00mm
Current Rating (Amps) 1A
Contact Type Forked
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 500V
Number of Rows 2
Number of Positions 22
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Insulation Material Polyamide (PA9T), Nylon 9T
Mounting Type Surface Mount
Contact Material Bronze

Supply Chain

Factory Lead Time 18 Weeks
