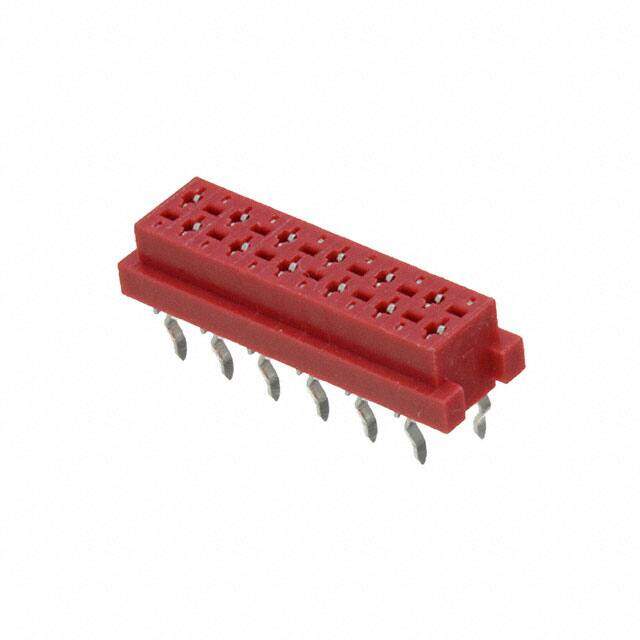

3521-12-0100-99
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 12POS 0.1 TIN PCB
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.6688
≥1 USD $0.6688
≥10 USD $0.543198
≥100 USD $0.508596
≥500 USD $0.416117
≥1000 USD $0.407
Inventory: 1655
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Insulation Color Red
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.157 4.00mm
Current Rating (Amps) 1A
Contact Type Forked
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 500V
Number of Rows 2
Number of Positions 12
Connector Type Receptacle
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyamide (PA9T), Nylon 9T
Mounting Type Through Hole
Contact Material Bronze
Supply Chain
Factory Lead Time 18 Weeks
