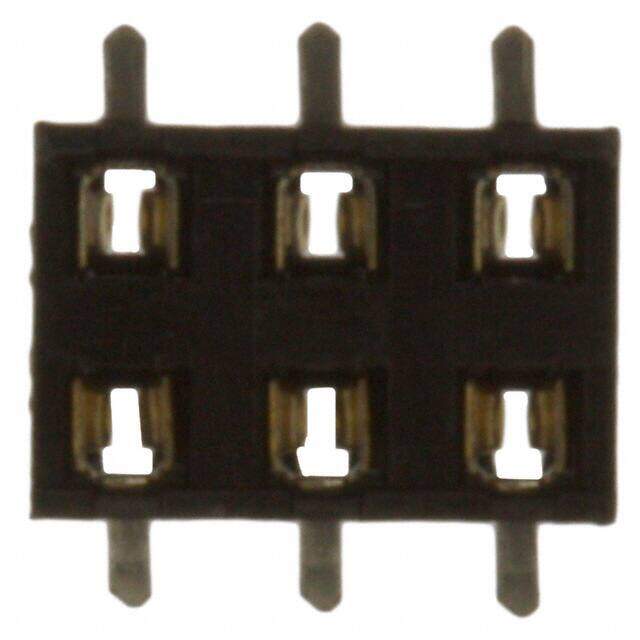

91596-106
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 6POS 0.079 GOLD SMD
PDF
/
Inventory: 3301
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Beryllium Copper
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Plastic
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series Minitek? 2.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom Entry
Number of Positions 6
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Voltage - Rated 200V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Pitch 2.0066mm
Orientation Straight
Depth 4mm
Insulation Height 0.091 2.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Finish - Post Tin-Lead
Housing Color Black
Contact Resistance 20mOhm
Max Voltage Rating (AC) 200V
Dimensions
Length 5.92mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
