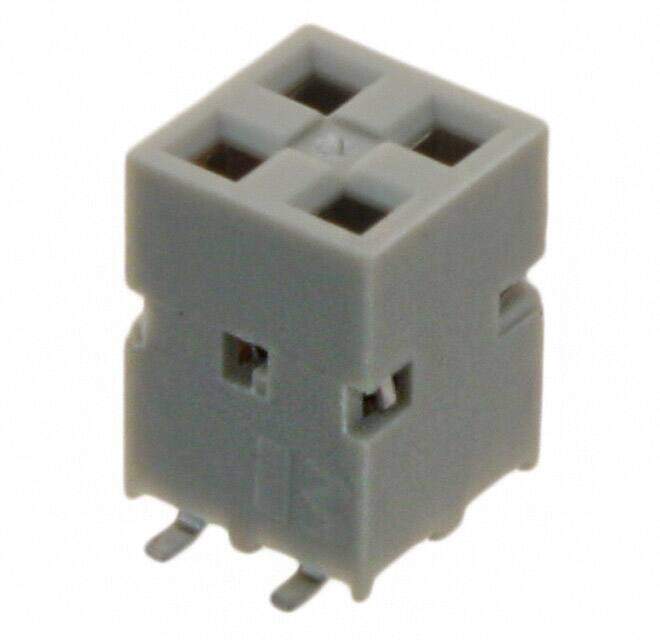

89898-302LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 4POS .100 DL STR SMD
PDF
/
Buying Options
Total Price: USD $0.59
Unit Price: USD $0.5896
≥1 USD $0.5896
≥10 USD $0.49984
≥100 USD $0.448536
≥500 USD $0.366978
≥1000 USD $0.358934
Inventory: 5034
Minimum: 1
-
+
Technical Details
Dimensions
Stack Height (Mating) 10.81mm
Stack Height 7mm
Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 5mm
Height 7.5mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Technical
Max Voltage Rating (AC) 1kV
Insulation Resistance 100GOhm
Contact Resistance 20mOhm
Housing Color Grey
Contact Finish - Post Tin
Number of Contacts 4
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.275 6.99mm
Depth 5.08mm
Orientation Straight
Pitch 2.54mm
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 1kV
Gender Female
Number of Rows 2
Applications Automotive, General Purpose, Industrial, Telecommunications
Color Grey
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 4
Connector Type Receptacle, Bottom or Top Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Dubox?
Published 2006
Packaging Bulk
Physical
Housing Material Thermoplastic
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 9 Weeks
