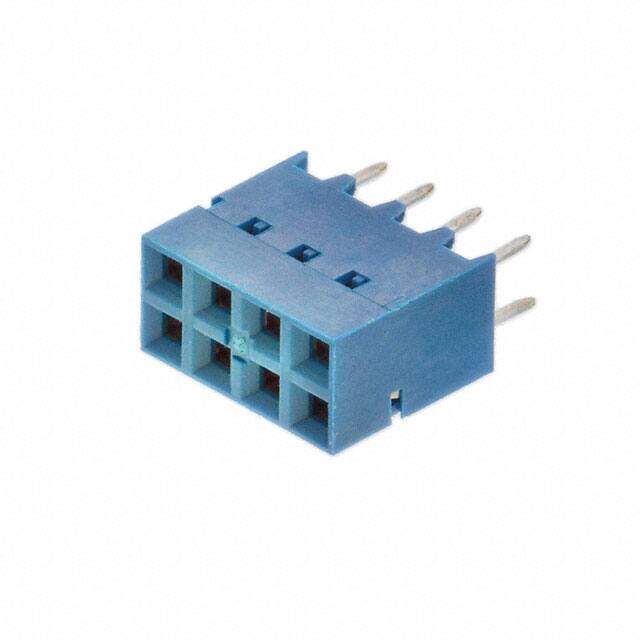

87606-304LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Board to Board & Mezzanine Connectors 8P DR PCB MNT RECPT 2.54 mm x 2.54 mm
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.9448
≥1 USD $1.9448
≥10 USD $1.69048
≥100 USD $1.510696
≥500 USD $1.258946
≥1000 USD $1.079091
≥3000 USD $0.956798
Inventory: 257
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 10.08mm
Technical
Insertion Force-Max 1.4734 N
Dielectric Withstanding Voltage 1400VAC V
Max Voltage Rating (AC) 1kV
Mating Contact Pitch 0.1 inch
Insulation Resistance 100000000000Ohm
Contact Resistance 20mOhm
Rated Current (Signal) 3A
Housing Color Blue
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Depth 5.08mm
Orientation Straight
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Applications Automotive, General Purpose, Industrial, Telecommunications
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 8
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Dubox?
Published 2014
Packaging Tube
Physical
Housing Material Thermoplastic
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 9 Weeks
