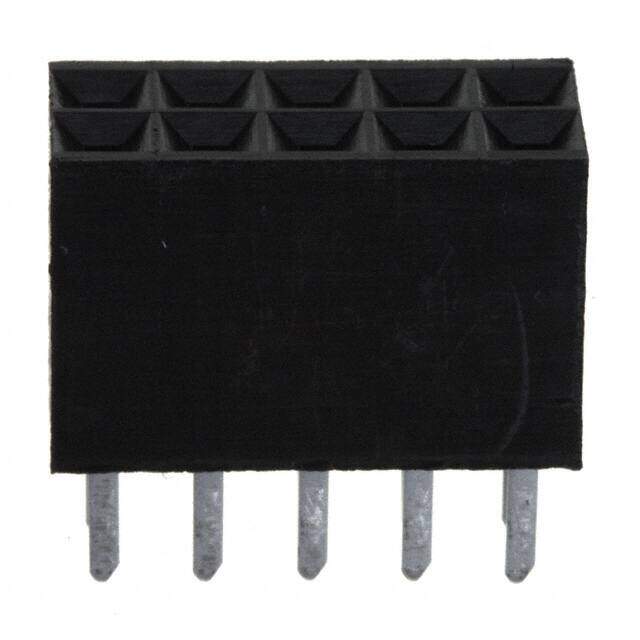

66953-005LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 10POS .100 DL STR PCB
PDF
/
Buying Options
Total Price: USD $1.98
Unit Price: USD $1.98
≥1 USD $1.98
≥10 USD $1.66129
≥100 USD $1.58209
≥500 USD $1.392714
Inventory: 3025
Minimum: 1
-
+
Technical Details
Technical
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 2
Gender Receptacle
Voltage - Rated 1250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Pitch 2.54mm
Orientation Straight
Depth 6.1mm
Insulation Height 0.325 8.25mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.138 3.50mm
Number of Contacts 10
Contact Finish - Post Tin
Contact Gender Female
Housing Color Black
Contact Resistance 15mOhm
Max Voltage Rating (AC) 1.25kV
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 10
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Dubox?, BergCon? PV?
Published 2013
Packaging Tube
Operating Temperature -65°C~125°C
Dimensions
Length 12.7mm
Width 6.1mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Physical
Housing Material Thermoplastic
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
