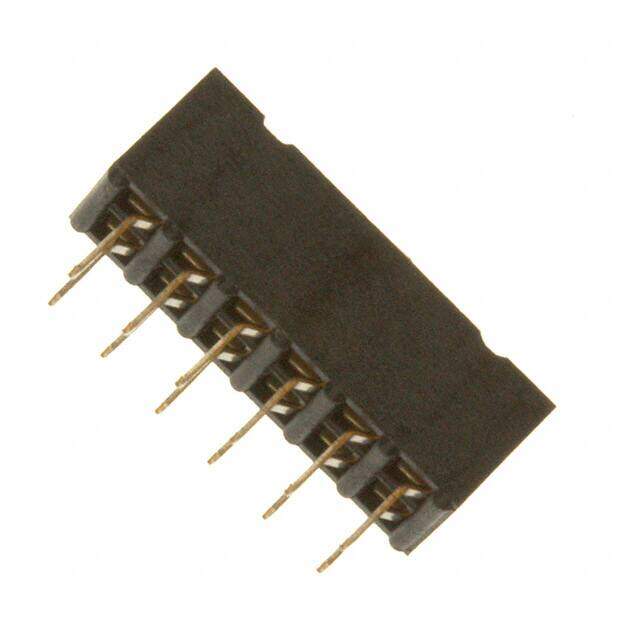

63453-112LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 12POS 0.079 GOLD PCB
PDF
/
Buying Options
Total Price: USD $1.37
Unit Price: USD $1.3728
≥1 USD $1.3728
≥10 USD $1.19416
≥100 USD $1.067088
≥500 USD $0.889222
≥1000 USD $0.736789
≥3000 USD $0.675814
Inventory: 2526
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Thermoplastic
Housing Material Thermoplastic
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series Minitek? 2.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Applications General Purpose, Industrial, Medical
Number of Rows 2
Gender Receptacle
Voltage - Rated 200V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 2A
Pitch 2mm
Orientation Straight
Depth 4.2mm
Insulation Height 0.177 4.50mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.098 2.50mm
Number of Contacts 12
Contact Finish - Post Tin
Contact Gender Female
Housing Color Black
Lead Length 2.5mm
Max Voltage Rating (AC) 200V
Dimensions
Length 12.8mm
Width 4.2mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 60.0μin 1.52μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
