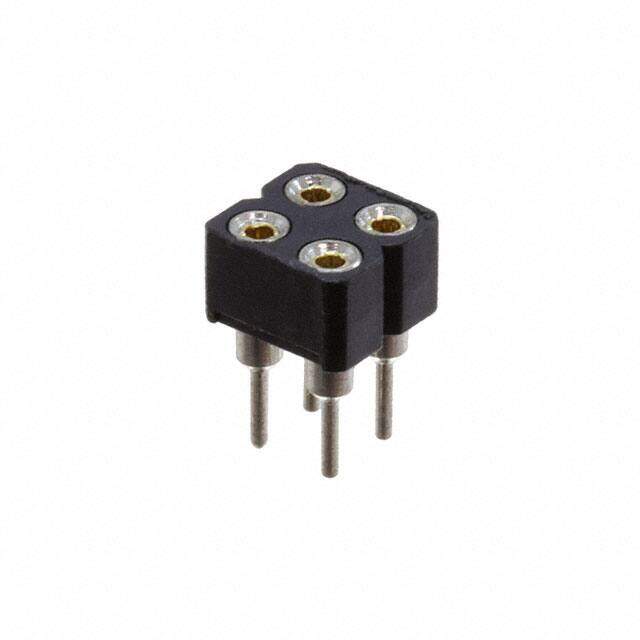

SMC-2-04-1-GT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Receptacle
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.25784
≥100 USD $0.22704
≥500 USD $0.208736
≥1000 USD $0.200552
Inventory: 284
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Technical
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.079 inch
Insulation Resistance 1000000000Ohm
Body Breadth 0.165 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 0.158 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Total Number of Contacts 4
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Voltage - Rated 100V 150VDC
Number of Rows 2
Number of Positions 4
Connector Type Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series SMC
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Mounting Option 1 LOCKING
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
