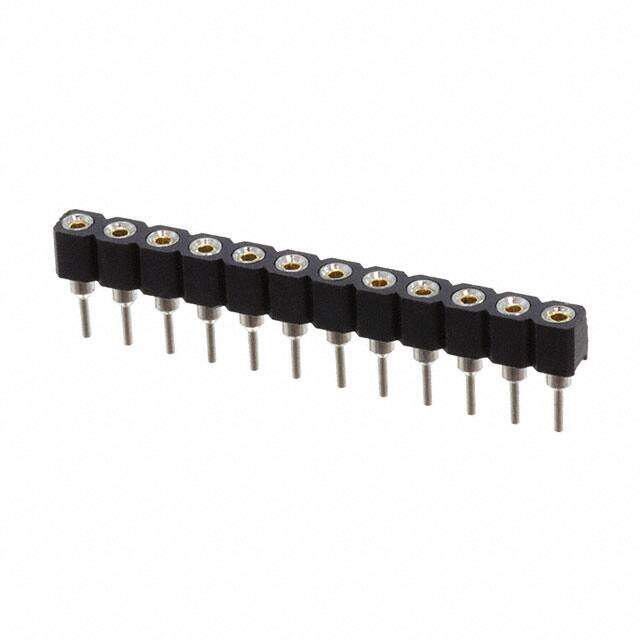

SMC-1-12-1-GT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
MACHINE PIN SOCKET 12P 1.00MM PI
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.60016
≥100 USD $0.548416
≥500 USD $0.516208
≥1000 USD $0.494736
≥3000 USD $0.451678
Inventory: 3186
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Technical
Insulation Resistance 5000000000Ohm
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number of Contacts 12
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Voltage - Rated 100V 150VDC
Number of Rows 1
Number of Positions 12
Connector Type Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SMC
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material GLASS FILLED POLYPHENYLENE SULPHIDE
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
