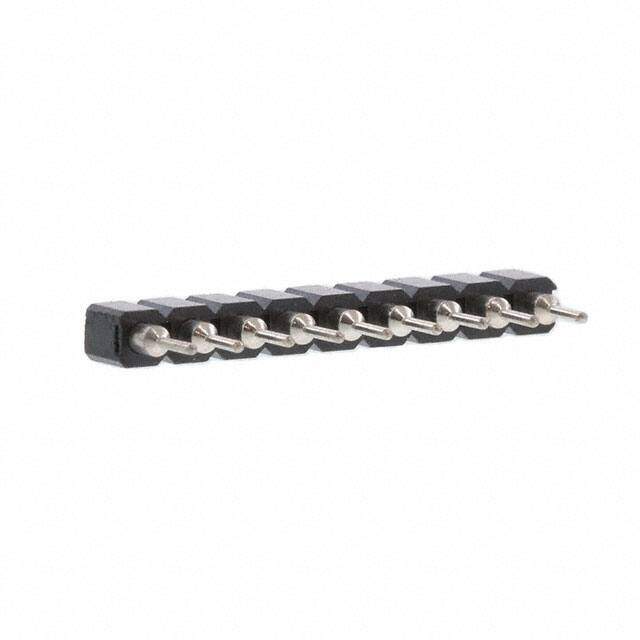

SMC-1-09-1-GT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 9 POS 2.54mm Solder ST Top Entry Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.33
≥100 USD $0.291104
≥500 USD $0.26752
Inventory: 111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material GLASS FILLED POLYPHENYLENE SULPHIDE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Series SMC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Socket
Number of Positions 9
Number of Rows 1
Voltage - Rated 100V 150VDC
Additional Feature ROHS COMPLIANT
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Terminal Pitch 2.54mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Contacts 9
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Insulation Resistance 5000000000Ohm
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
