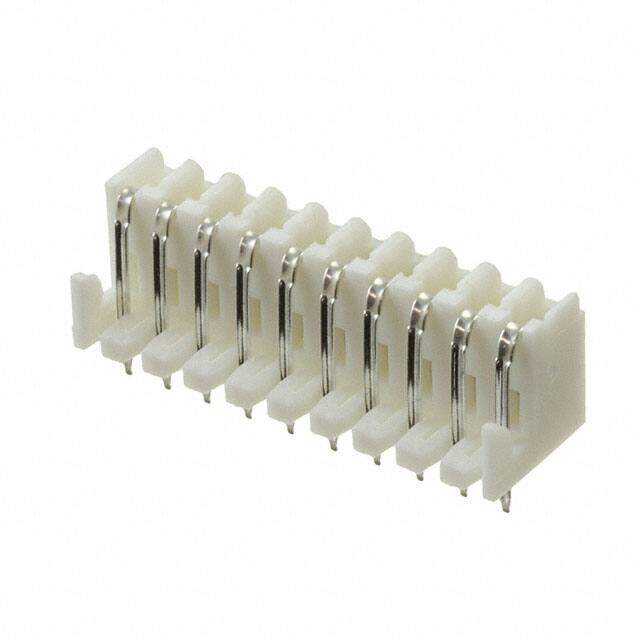

PCE-C-10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
RECEPTICAL WITH HOOKS 10P 2.54MM
PDF
/
Buying Options
Total Price: USD $1.49
Unit Price: USD $1.4872
≥1 USD $1.4872
≥10 USD $1.29184
Inventory: 460
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Polarization Key POLARIZED HOUSING
Contact Gender MALE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.146 3.70mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.276 7.00mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Non-Gendered
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Voltage - Rated 250VAC
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 10
Connector Type Receptacle, Bottom Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Hooks
Series PCE
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 9 Weeks
