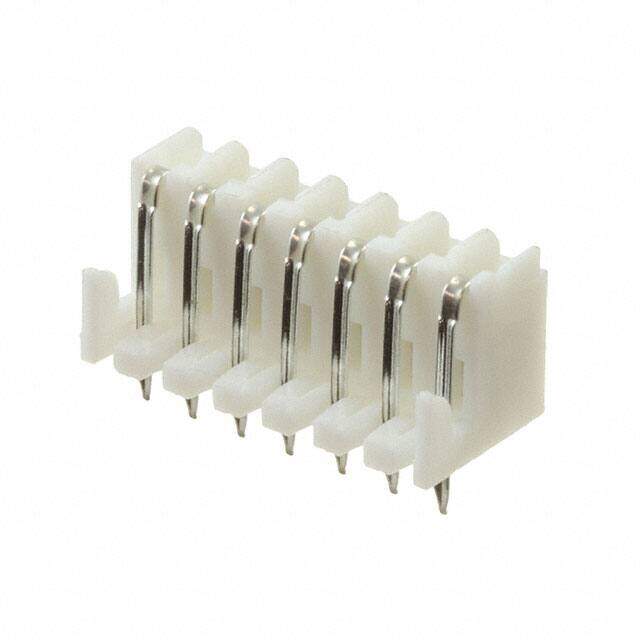

PCE-C-07
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Header
PDF
/
Buying Options
Total Price: USD $1.12
Unit Price: USD $1.1176
≥1 USD $1.1176
≥10 USD $0.94512
Inventory: 445
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Mounting Option 1 LOCKING
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series PCE
Feature Board Hooks
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom Entry
Number of Positions 7
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
Contact Type Non-Gendered
Current Rating (Amps) 3A
Terminal Pitch 2.54mm
Insulation Height 0.276 7.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.146 3.70mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Contact Gender MALE
Polarization Key POLARIZED HOUSING
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
