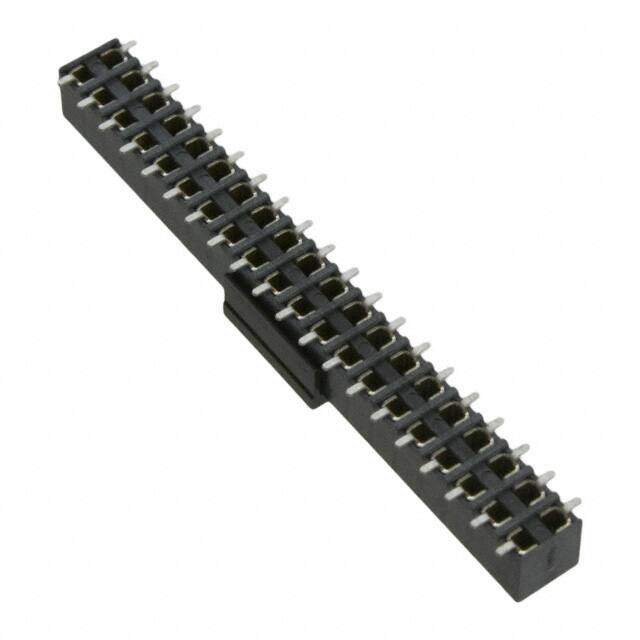

966240-2000-AR-PR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET LO-PRO 40PS GOLD SMD
PDF
/
Inventory: 2480
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 40.0μin 1.02μm
Contact Finish Thickness - Mating Flash
Technical
Contact Finish - Post Tin
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.197 5.00mm
Pitch 2.54mm
Current Rating (Amps) 2A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 1000VDC
Number of Rows 2
Color Black
Number of Positions 40
Connector Type Receptacle, Bottom or Top Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place
Series 966
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -25°C~105°C
Physical
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
