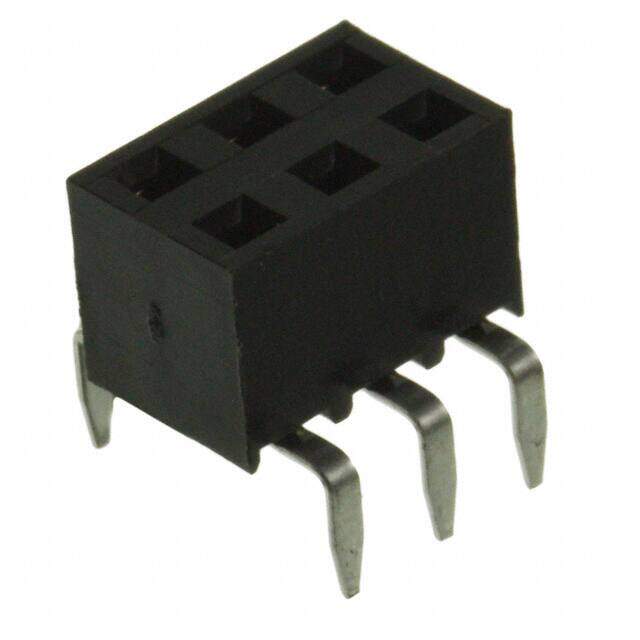

966206-6702-AR image
Favorite
966206-6702-AR image
Favorite

966206-6702-AR

3M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description DE500057307 966206-6702-AR=6/SKT/TBD/0.1/2R/PTH/3.0/10U/RC
PDF
/
Inventory: 6838
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Thermoplastic

Technical

Operating Temperature -25°C~105°C
Packaging Tube
Published 2012
Series 966
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom or Top Entry
Number of Positions 6
Max Operating Temperature 105°C
Min Operating Temperature -25°C
Color Black
Number of Rows 2
Voltage - Rated 1000VDC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 2A
Pitch 2.54mm
Insulation Height 0.197 5.00mm
Style Board to Board
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.118 3.00mm
Contact Finish - Post Tin
Contact Gender Female
Lead Length 3mm
Insulation Resistance 500MOhm

Dimensions

Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post 40.0μin 1.02μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
