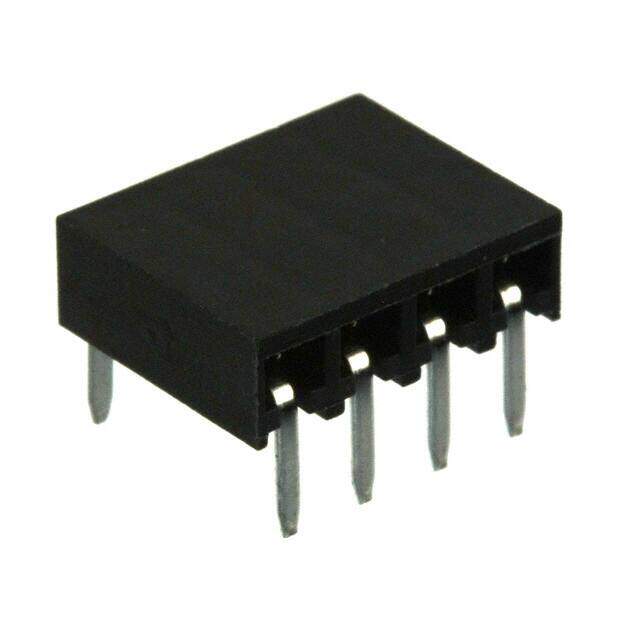

960104-7102-AR
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 4POS 0.1 GOLD PCB R/A
PDF
/
Inventory: 1259
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 40.0μin 1.02μm
Contact Finish Thickness - Mating Flash
Technical
Contact Finish - Post Tin
Number of Contacts 4
Contact Length - Post 0.130 3.30mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.126 3.20mm
Pitch 2.54mm
Current Rating (Amps) 2A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 1000VDC
Number of Rows 1
Color Black
Number of Positions 4
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 960
Published 2010
Packaging Tube
Operating Temperature -25°C~125°C
Physical
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
