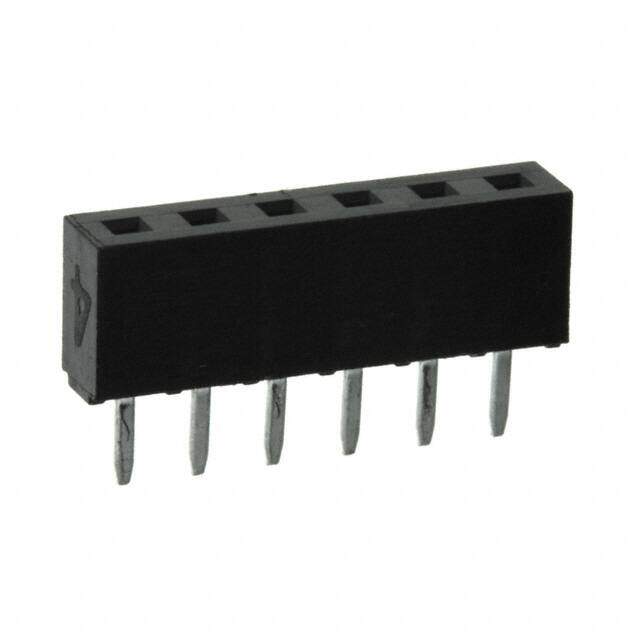

950506-6102-AR
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 6POS 0.079 GOLD PCB
PDF
/
Inventory: 8564
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2008
Series 950
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 6
Number of Rows 1
Voltage - Rated 1000V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Insulation Height 0.169 4.30mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Contact Length - Post 0.098 2.50mm
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post 40.0μin 1.02μm
Compliance
Material Flammability Rating UL94 V-0
