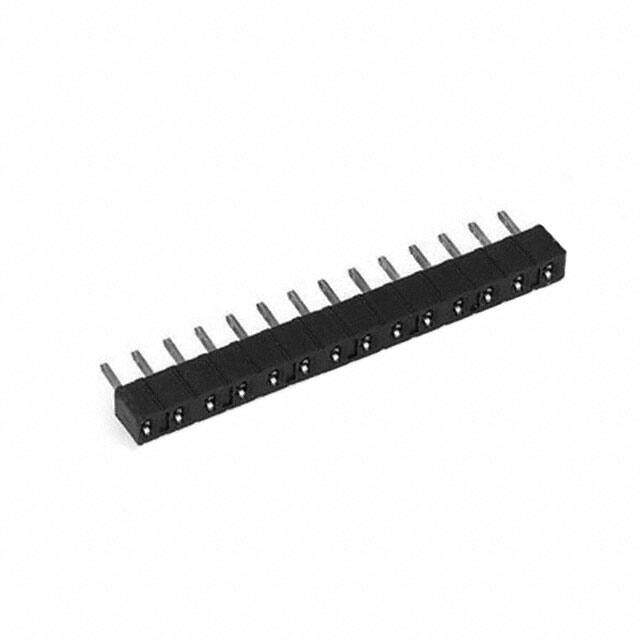

929984-01-14-RK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 14 CON LOW PROFILE
PDF
/
Buying Options
Total Price: USD $2.51
Unit Price: USD $2.508
≥1 USD $2.508
≥10 USD $2.27744
≥100 USD $2.006576
≥500 USD $1.454754
≥1000 USD $1.304257
Inventory: 326
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 2.54mm
Length 35.6mm
Height 3.8mm
Technical
Housing Color Black
Contact Gender Female
Contact Finish - Post Tin
Contact Length - Post 0.125 3.18mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.150 3.81mm
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Type Forked
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 1000V
Gender Female
Number of Rows 1
Color Black
Number of Positions 14
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 929
Published 2007
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polycyclohexylenedimethylene
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
