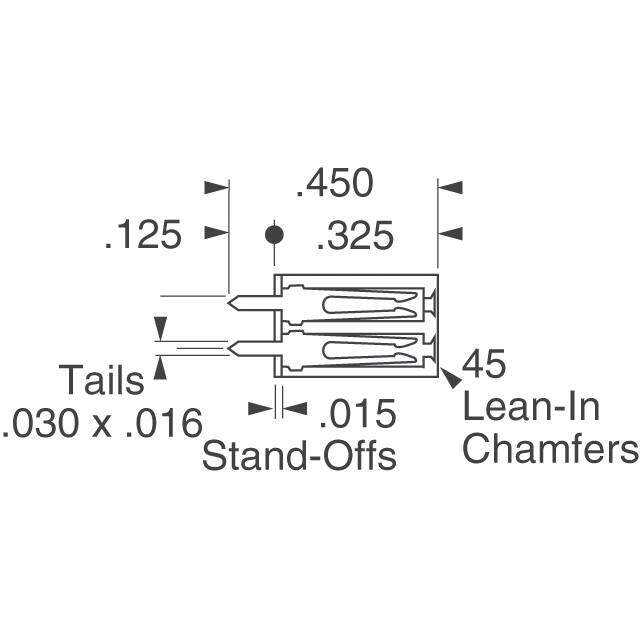

929975-01-38-RK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 38 CON STR BRDMNT SKT
PDF
/
Inventory: 3794
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material Polycyclohexylenedimethylene
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2009
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 76
Number of Rows 2
Voltage - Rated 1500V
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Forked
Current Rating (Amps) 2A
Insulation Height 0.325 8.25mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.125 3.18mm
Contact Gender Female
Housing Color Black
Dimensions
Height 8.26mm
Width 5.08mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
