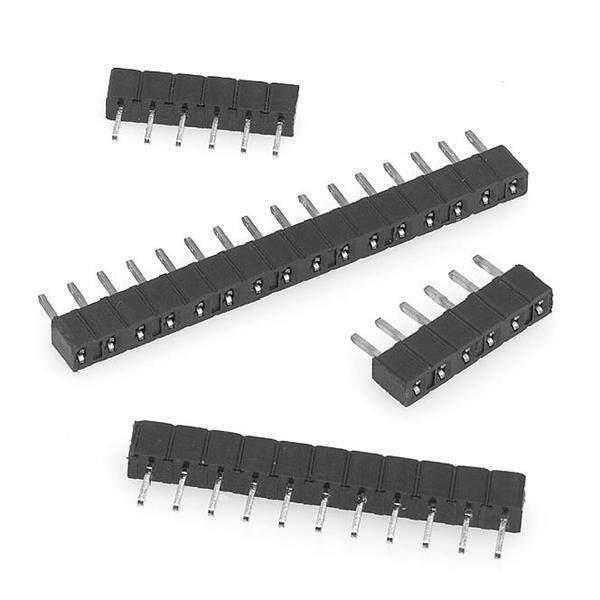

929870-01-19-10
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 19P LO PRO STRT SKT
PDF
/
Inventory: 2231
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Polyester
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2007
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 19
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 1000V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Forked
Current Rating (Amps) 1A
Pitch 2.54mm
Insulation Height 0.150 3.81mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.125 3.18mm
Lead Pitch 2.54mm
Contact Finish - Post Tin-Lead
Housing Color Black
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
