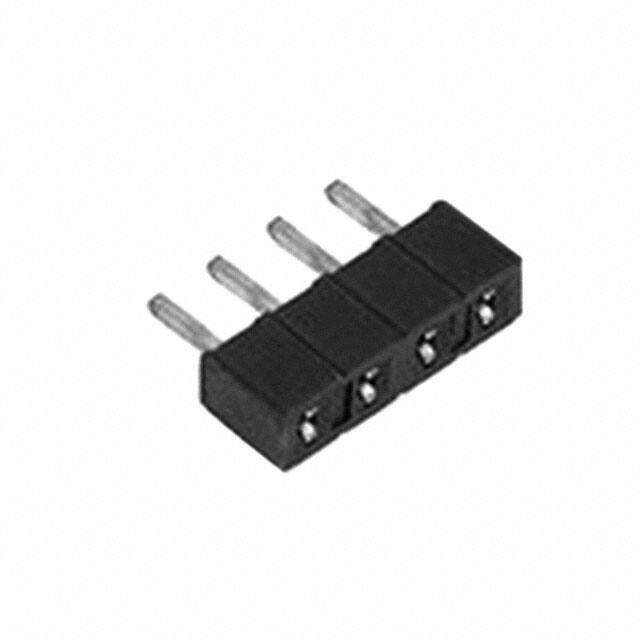

929870-01-04-30
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 04/1R/BM SKT/.100 STR/.125/30AVE/90:10
PDF
/
Inventory: 4598
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Contact Gender Female
Contact Finish - Post Tin-Lead
Contact Length - Post 0.125 3.18mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.150 3.81mm
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Type Forked
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 1000V
Gender Female
Number of Rows 1
Color Black
Number of Positions 4
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 929
Published 2007
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 3 Weeks
