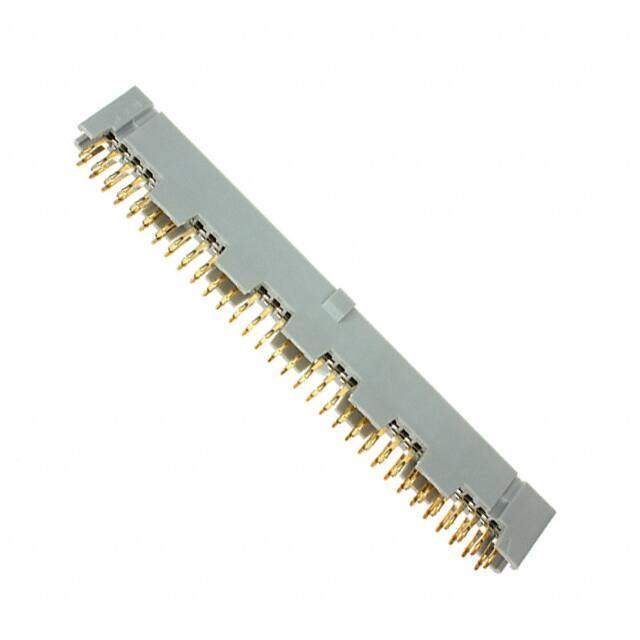

8564-4500PL
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET PCB VERT 64POS .1"
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post Flash
Contact Finish Thickness - Mating 12.0μin 0.30μm
Length 85.8mm
Technical
Number of Poles 64
Max Current Rating 1A
Housing Color Grey
Contact Gender Female
Contact Finish - Post Gold
Number of Contacts 64
Lead Pitch 2.54mm
Contact Length - Post 0.110 2.79mm
Row Spacing - Mating 0.100 (2.54mm)
Voltage - Rated AC 350V
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.425 10.80mm
Depth 7.1mm
Orientation Straight
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 1000V
Gender Receptacle
Number of Rows 2
Color Grey
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 64
Connector Type Receptacle
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Polarizing Key
Series 8500
Published 2003
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
