5126-B7A2PL
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

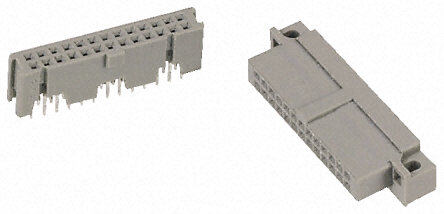

3M - 5126-B7A2PL - SOCKET, PCB, RIGHT ANGLE, 26WAY
PDF
/
Buying Options
Total Price: USD $10.41
Unit Price: USD $10.406433
≥1 USD $10.406433
≥10 USD $9.817389
≥100 USD $9.261688
≥500 USD $8.737444
≥1000 USD $8.242869
Inventory: 4326
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post Flash
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 45.7mm
Technical
Max Current Rating 1A
Insulation Resistance 1GOhm
Housing Color Grey
Contact Gender Female
Contact Finish - Post Gold
Number of Contacts 26
Lead Pitch 2.54mm
Contact Length - Post 0.102 2.60mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.350 8.89mm
Depth 14.6mm
Orientation Right Angle
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Voltage - Rated DC 350V
Fastening Type Push-Pull
Voltage - Rated 1000V
Gender Receptacle
Number of Rows 2
Color Grey
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 26
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Mounting Flange, Polarizing Key
Series 5100
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Polybutylene
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
