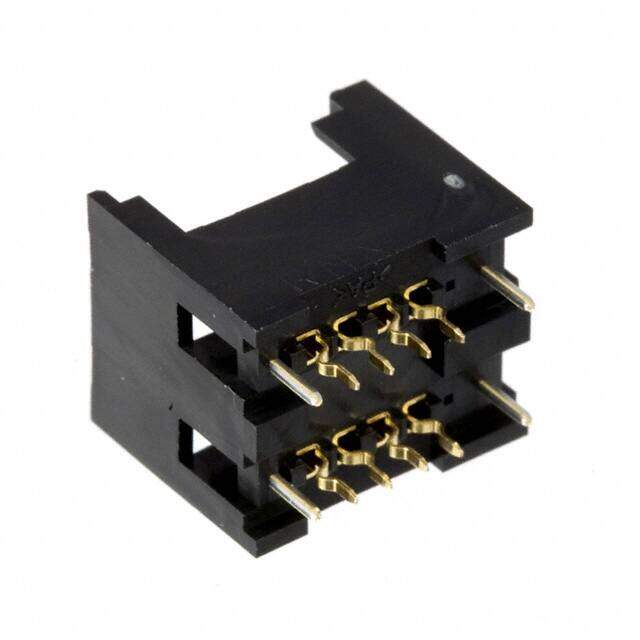

37208-62A3-004PL image
Favorite
37208-62A3-004PL image
Favorite

37208-62A3-004PL

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Wire-To-Board Connector, Type A, Mini-Clamp 372 Series, Through Hole, Receptacle, 8, 2 mm
PDF
/
Inventory: 8569
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Material Nylon
Housing Material Nylon

Technical

Packaging Bulk
Published 2007
Series Mini-Clamp I, 372
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Receptacle
Number of Positions 8
Max Operating Temperature 60°C
Min Operating Temperature -20°C
Color Black
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows 2
Gender Receptacle
Voltage - Rated 32V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Pitch 2mm
Orientation Straight
Depth 12.9mm
Insulation Height 0.512 13.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Voltage - Rated AC 32V
Row Spacing - Mating 0.256 (6.50mm)
Contact Length - Post 0.102 2.60mm
Number of Contacts 8
Contact Finish - Post Gold
Contact Gender Male
Housing Color Black
Max Current Rating 3A

Dimensions

Length 15.8mm
Contact Finish Thickness - Mating 8.00μin 0.203μm
Contact Finish Thickness - Post Flash

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
