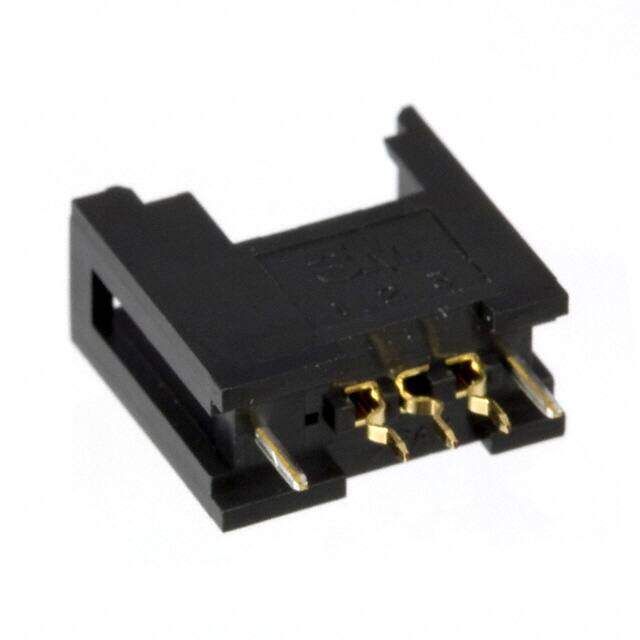

37203-62A3-003PL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 3POS 0.079 GOLD PCB
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8656
≥1 USD $1.8656
≥10 USD $1.62096
≥100 USD $1.448216
≥500 USD $1.206832
≥1000 USD $1.034431
≥3000 USD $0.917198
Inventory: 1349
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Nylon
Technical
Packaging Bulk
Published 2009
Series Mini-Clamp I, 372
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Receptacle
Number of Positions 3
Max Operating Temperature 85°C
Min Operating Temperature -20°C
Color Black
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows 1
Gender Receptacle
Voltage - Rated 32V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Pitch 2mm
Orientation Straight
Depth 6.4mm
Insulation Height 0.512 13.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Contact Length - Post 0.102 2.60mm
Number of Contacts 3
Contact Finish - Post Gold
Housing Color Black
Max Current Rating 3A
Dimensions
Length 13.8mm
Contact Finish Thickness - Mating 8.00μin 0.203μm
Contact Finish Thickness - Post Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
