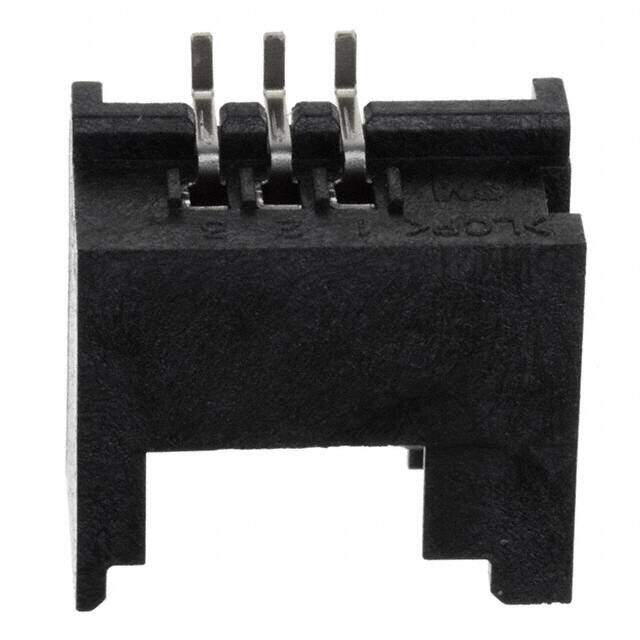

37203-12E0-003 PL

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 3P 0.079 GOLD SMD R/A
PDF
/
Buying Options
Total Price: USD $2.85
Unit Price: USD $2.8512
≥1 USD $2.8512
≥10 USD $2.58896
≥100 USD $2.2814
≥500 USD $1.939168
≥1000 USD $1.653995
≥3000 USD $1.482888
Inventory: 871
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Copper Alloy
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)

Technical

Packaging Bulk
Published 2011
Series Mini-Clamp I, 372
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 3
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows 1
Voltage - Rated 32V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Insulation Height 0.303 7.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Contact Finish - Post Gold

Dimensions

Contact Finish Thickness - Mating 8.00μin 0.203μm
Contact Finish Thickness - Post Flash

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
