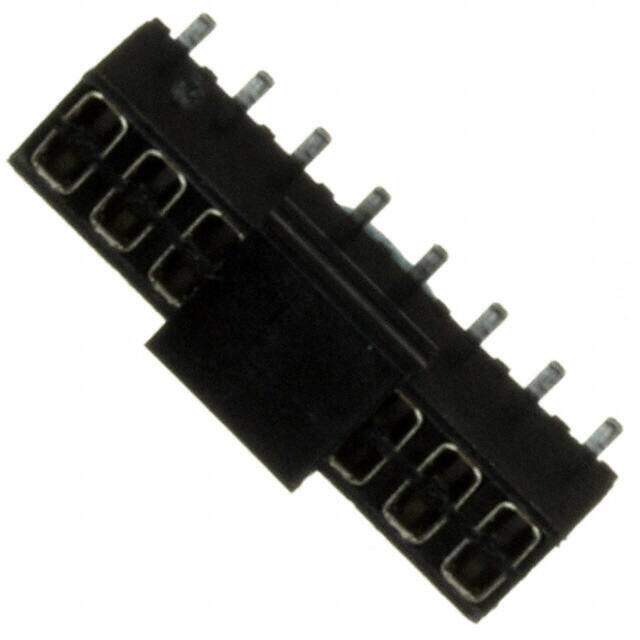

153216-2020-RB-WB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN 2MM SKT 16POS THRU-BRD SMD
PDF
/
Buying Options
Total Price: USD $2.9
Unit Price: USD $2.904
≥1 USD $2.904
≥10 USD $2.63472
≥100 USD $2.321176
Inventory: 682
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2010
Series 1532
Feature Board Guide, Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom or Top Entry
Number of Positions 16
Color Black
Number of Rows 2
Voltage - Rated 500VDC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Pitch 2.0066mm
Insulation Height 0.129 3.28mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Finish - Post Tin
Housing Color Black
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
