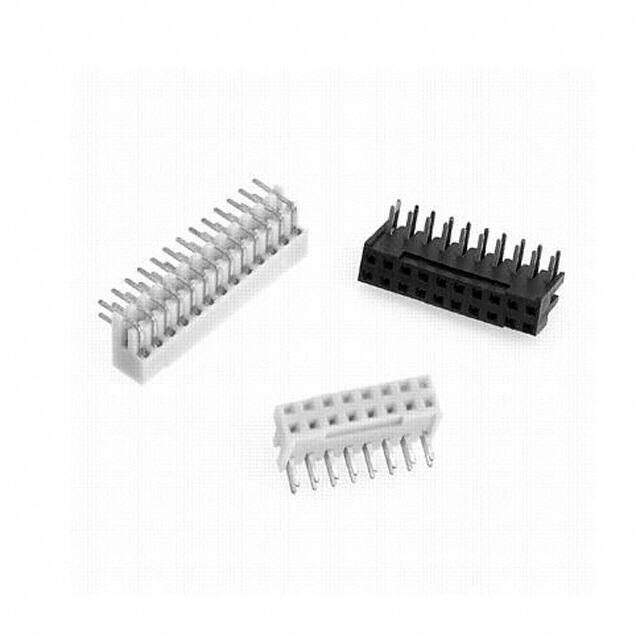

150258-5002-TB image
Favorite
150258-5002-TB image
Favorite

150258-5002-TB

3M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 58P 0.079 GOLD PCB R/A
PDF
/
Inventory: 1517
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Plastic

Technical

Operating Temperature -55°C~105°C
Packaging Tray
Published 2004
Series 1502
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 58
Color Black
Number of Rows 2
Voltage - Rated 500VDC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Pitch 2.0066mm
Insulation Height 0.179 4.55mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.100 2.54mm
Contact Finish - Post Tin-Lead
Housing Color Black

Dimensions

Height 4.55mm
Length 58mm
Width 7.87mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 200.0μin 5.08μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
