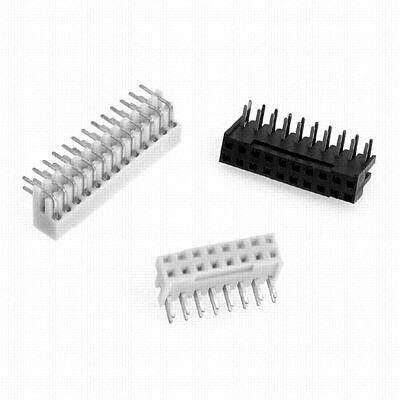

150250-5202-TB image
Favorite
150250-5202-TB image
Favorite

150250-5202-TB

3M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 50P 0.079 GOLD PCB R/A
PDF
/
Inventory: 7075
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Contact Type Female Socket
Current Rating (Amps) 1A
Pitch 2.0066mm
Insulation Height 0.192 4.88mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.125 3.18mm
Number of Contacts 50
Contact Finish - Post Tin-Lead
Housing Color Black
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500VDC
Number of Rows 2
Color Black
Number of Positions 50
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 1502
Published 2012
Packaging Tray
Operating Temperature -55°C~105°C

Dimensions

Height 4.88mm
Length 50mm
Width 7.87mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 200.0μin 5.08μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead

Physical

Weight 294.835069g
Housing Material Plastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
