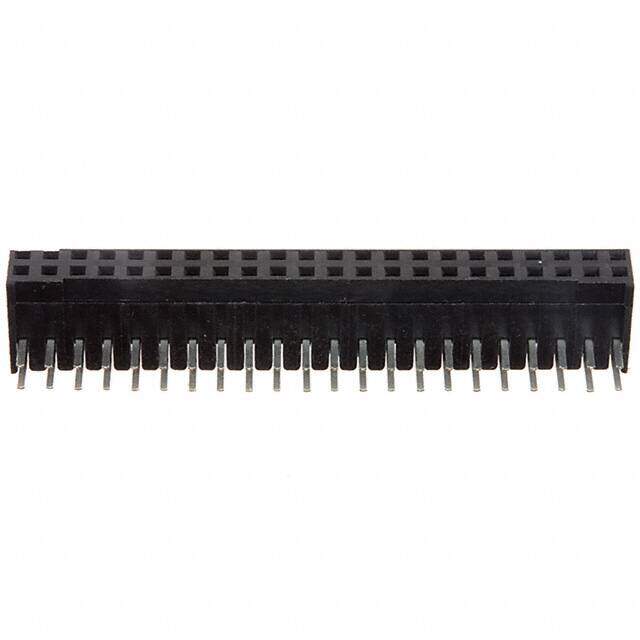

150244-5002-RB
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 44P 0.079 GOLD PCB R/A
PDF
/
Inventory: 8669
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 44
Contact Length - Post 0.100 2.54mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.179 4.55mm
Pitch 2.0066mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500VDC
Gender Receptacle
Number of Rows 2
Color Black
Number of Positions 44
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 1502
Published 2010
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Housing Material Plastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
