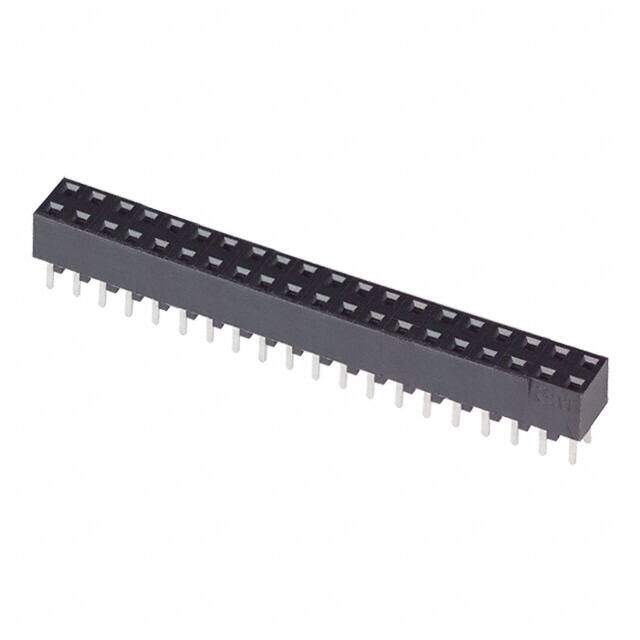

150240-6002-TB
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 40POS 0.079 GOLD PCB
PDF
/
Inventory: 2822
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 3m
Technical
Sensing Distance 3 m
Cable Length 3m
Lead Length 3m
Housing Color Black
Contact Gender Female
Contact Finish - Post Tin-Lead
Number of Contacts 40
Contact Length - Post 0.100 2.54mm
Row Spacing - Mating 0.079 (2.00mm)
Approval Agency UL
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.177 4.50mm
Orientation Straight
Pitch 2mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500VDC
Gender Female
Number of Rows 2
Color Black
Max Operating Temperature 105°C
Number of Positions 40
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 1502
Published 2008
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Weight 294.835069g
Housing Material Plastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
